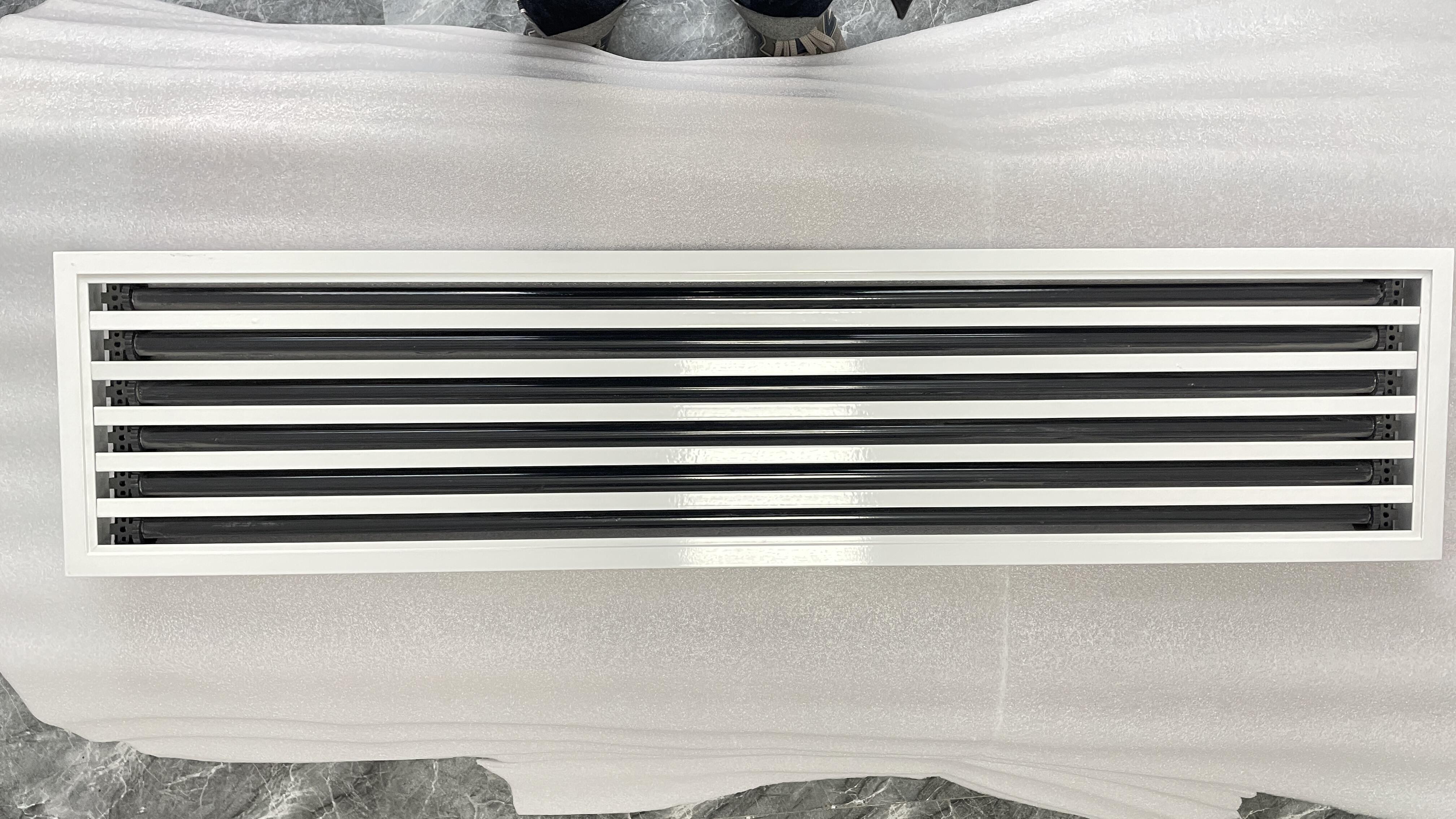

What sizes of louvre diffuser fit different wall openings?

Understanding Louvre Diffuser Sizing: Nominal vs. Actual Dimensions

Why Standard Labeled Sizes Don’t Match Actual Wall Opening Dimensions

Louvre diffuser sizing discrepancies stem from industry-standard practices where nominal dimensions (e.g., 24"x24") represent catalog references, not physical measurements. Actual dimensions are typically 0.25"–0.5" smaller per side to allow for installation tolerances, ensuring a secure fit within framed openings without compromising airflow performance.

Nominal Size	Typical Actual Dimensions	Clearance Required
12"x12"	11.75"x11.75"	0.25" per side
24"x24"	23.5"x23.5"	0.5" per side

The Difference Between External Dimensions and Nominal Size

A louvre diffuser’s external dimensions include flange overhangs and mounting components, while the nominal size refers only to the neck opening. For example, a 24" nominal unit may measure 25" overall due to 0.5" flanges on each side—critical information for retrofit applications where space is constrained.

Inconsistent Labeling Practices Among Manufacturers

The HVAC industry lacks unified sizing standards, resulting in three common labeling methods: neck diameter, face dimensions, or hybrid systems. This inconsistency makes it essential to consult manufacturer cut sheets and verify actual measurements before selection.

How to Interpret Product Datasheets for Precise Louvre Diffuser Fitment

Always rely on “cutout size” or “required opening” specifications in technical documentation rather than nominal labels. A listed 18" nominal diffuser might require a 17.625"x17.625" rough-in—cross-check these values against field measurements to prevent ordering errors.

Case Study: Avoiding Mismatched Installation Through Accurate Size Interpretation

A 2023 hospital retrofit project avoided $18k in rework by developing a sizing matrix that compared six manufacturers’ actual dimensions with BIM models. This pre-installation review identified 22% of proposed units as incompatible, enabling timely adjustments before procurement.

Measuring Wall Openings Accurately for Louvre Diffuser Installation

Key Considerations When Measuring Existing Wall Openings

Getting accurate measurements means checking width, height, and depth at several spots because walls aren't always straight or even. Most pros will tell anyone who asks that they take at least three readings both horizontally and vertically across each opening, then go with the smallest number as their starting point. This approach catches those little inconsistencies nobody notices until after installation. Also important is looking around for things hiding behind surfaces like electrical wires running through walls or pipes tucked under floors that eat away at what looks like available space on paper. For serious work, digital calipers are pretty much essential these days alongside laser distance tools which give readings within about 1mm accuracy. Regular old tape measures just can't match that precision level, typically giving results off by around 3mm instead. The difference matters when dealing with tight fits and expensive materials.

Clearance Required for Easy Installation and Alignment

Most louvre diffusers require somewhere between 12 to 18 mm of space around each side so they can be installed properly and maintained later without issues. Take a standard 500 mm wall cavity for example it makes sense to fit a 485 mm diffuser frame there since this leaves enough room and prevents problems when dealing with walls that aren't perfectly flat. The folks at ASHRAE actually mention something similar in their guideline number 180.1 about making sure there's enough space for insulation to compress naturally in outside walls. Makes perfect sense really because getting this clearance right from the start saves headaches down the road.

Impact of Uneven Walls or Framing on Effective Opening Size

Field surveys indicate only 40% of commercial buildings have wall openings with less than 5 mm variance. A 3° tilt in framing reduces the usable height of a 1,200 mm cavity by approximately 7 mm, calculated as:

Effective height = Measured height – cos(tilt angle)

To check squareness, compare diagonal measurements—differences exceeding 6 mm usually require shimming or structural correction.

Flange and Neck Dimensions: Ensuring Proper Fit and Duct Compatibility

How Flange Width Affects Fit Within a Given Wall Cavity

Flange width determines how securely a diffuser seats in the opening. A 2023 study found flanges underhanging the cavity by ≤3 mm caused alignment issues in 42% of installations, while oversized flanges necessitated destructive modifications. Optimal fit depends on matching flange width to the structural opening, not just the visible aperture.

Balancing Aesthetic Finish With Structural Clearance Using Flange Design

Modern designs use slim visible profiles (15–25 mm) for seamless integration with interior finishes. To maintain durability, some manufacturers offer tapered flanges with a 20 mm exposed edge and 30 mm concealed mounting surface—effectively balancing aesthetics and structural support.

Common Flange Sizes Across Residential and Commercial Louvre Diffusers

Flange dimensions vary by application:

• Residential: 80–150 mm total width (25 mm face)
• Commercial: 200–400 mm total width (30–40 mm face)

Always confirm actual dimensions, as nominal terms like "6-inch" or "10-inch" can deviate by up to 12% from real-world sizes.

Matching Neck Dimensions to Existing Ductwork for Optimal Airflow

Neck size directly influences airflow velocity. Mismatches—such as a 50 mm neck connected to 200 mm ducts—cause turbulence, reducing system efficiency by up to 22% (ASHRAE 2022). Measure both duct outer diameter and inner clearance with appropriate tolerances:

• Rigid ducts: ±1.5 mm
• Flexible ducts: ±3 mm

Adapting Non-Standard Neck Sizes With Transition Collars or Adapters

Adjustable transition collars can bridge gaps up to 25 mm without disrupting airflow. For legacy systems, spin-formed adapters provide permanent, high-efficiency connections—achieving 93% seal effectiveness compared to 78% with silicone wraps (2023 Mechanical Engineering Report). Select adapter materials that match the duct’s thermal expansion properties to ensure long-term integrity.

Best Practices for Selecting the Right Louvre Diffuser Size

Step-by-Step Guide to Verifying Compatibility Before Purchase

Start by measuring the wall opening’s width and height, allowing for a minimum 12 mm clearance on all sides to ensure easy installation. Consult manufacturer specifications to identify the diffuser’s actual footprint, which often exceeds labeled sizes due to flange extensions. For clarity:

Measurement Type	Purpose	Typical Margin
Wall Opening	Fitment	+12 mm clearance
Flange Width	Aesthetics	+28.5 mm per side

Use resources like the 2024 HVAC Installation Manual to calculate correct neck dimensions and verify compatibility with existing ductwork.

Using Manufacturer Specifications to Avoid Common Sizing Errors

Misinterpreted product sheets contribute to 40% of installation delays. Always cross-reference:

• Neck size vs. duct diameter
• Flange width vs. wall cavity depth
• Free area ratio (typically 0.4–0.7) against airflow requirements

Projects utilizing manufacturer-certified sizing tools reported a 63% reduction in rework (2023 HVAC Efficiency Report). Never assume labeled sizes reflect true dimensions—a “150 mm” diffuser may require a 200+ mm opening.

Case Study: Successful Large-Scale HVAC Project With Standardized Sizing

A commercial complex achieved 98% first-fit accuracy by:

1. Implementing ISO 13254-2 sizing protocols
2. Pre-scanning 1,200+ openings with laser technology
3. Employing modular adapters for ±5 mm variances

This strategy eliminated $18k in corrective work and accelerated commissioning by 11 days.

Growing Demand for Standardized Louvre Diffuser Sizing in B2B Markets

Contractor preference for ASHRAE-compliant sizing systems has risen to 74%, up from 52% in 2020, driven by tighter schedules and increased reliance on BIM modeling. Standardization minimizes errors in key parameters:

Parameter	Non-Standard Risk	Standardized Benefit
Flange Depth	Misalignment	±2 mm tolerance
Free Area Ratio	Airflow imbalance	15% efficiency gain

This shift underscores the growing importance of precision and interoperability in modern HVAC projects.

Frequently Asked Questions

What is the difference between nominal dimensions and actual dimensions in louvre diffusers?

Nominal dimensions refer to standardized catalog sizes, while actual dimensions account for installation tolerances, typically smaller by 0.25"-0.5" on each side to ensure a proper fit within framed openings.

Why do louvre diffusers have different external and nominal dimensions?

External dimensions include flange overhangs and mounting components, whereas nominal size refers solely to the neck opening. This is important for ensuring fitment, especially in retrofit applications.

How can I ensure proper louvre diffuser installation in uneven walls?

Measure multiple points for width, height, and depth, using the smallest measurement as your starting point. Consider obstacles like pipes or wires behind surfaces, and use digital tools for precision.

What clearance is necessary for louvre diffuser installation?

Most diffusers require 12 to 18 mm of space around each side for proper installation and maintenance.

How do flange and neck dimensions affect airflow and installation?

Flange width determines seat security in wall openings, while neck dimensions influence airflow velocity through ducts. Proper matching ensures optimal performance.

What best practices should be followed when selecting louvre diffuser size?

Verify wall opening dimensions, consult manufacturer specs, and allow for necessary clearances to avoid sizing errors and installation delays.
